Description

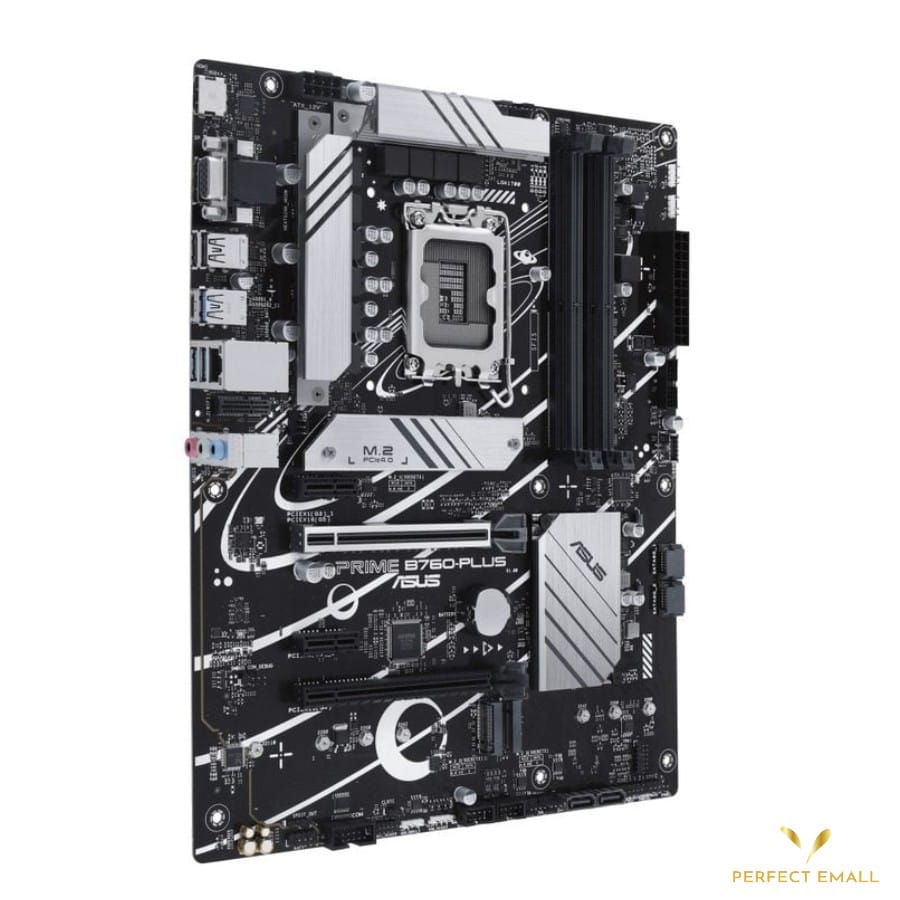

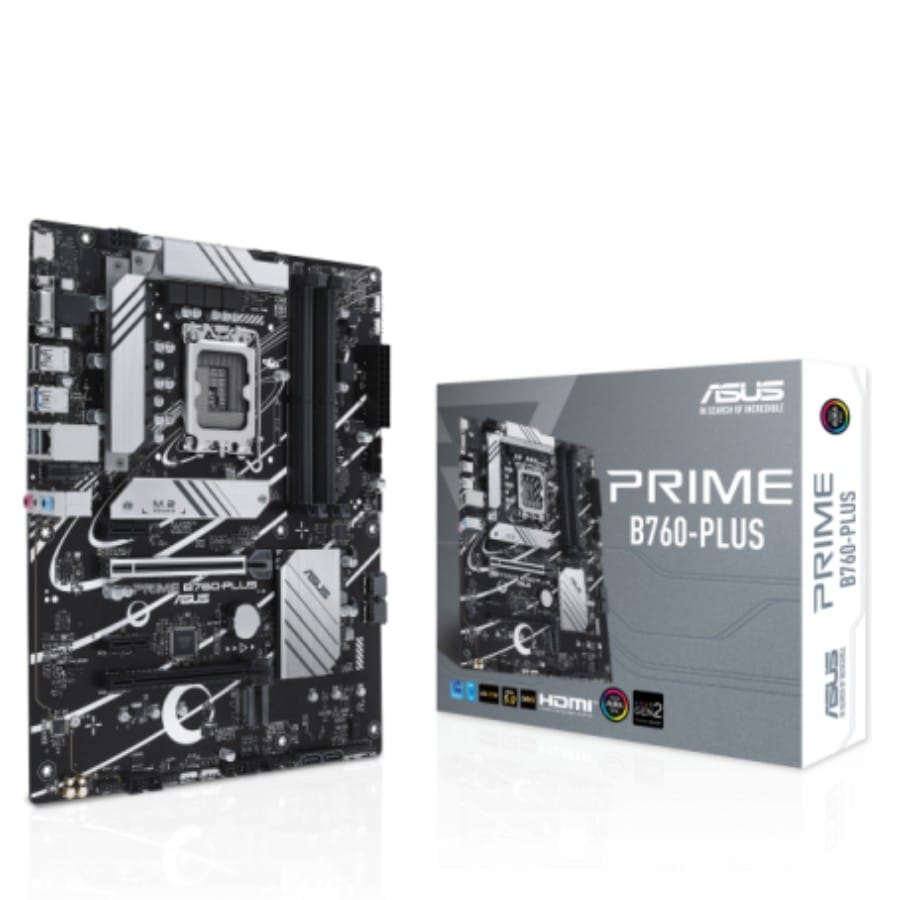

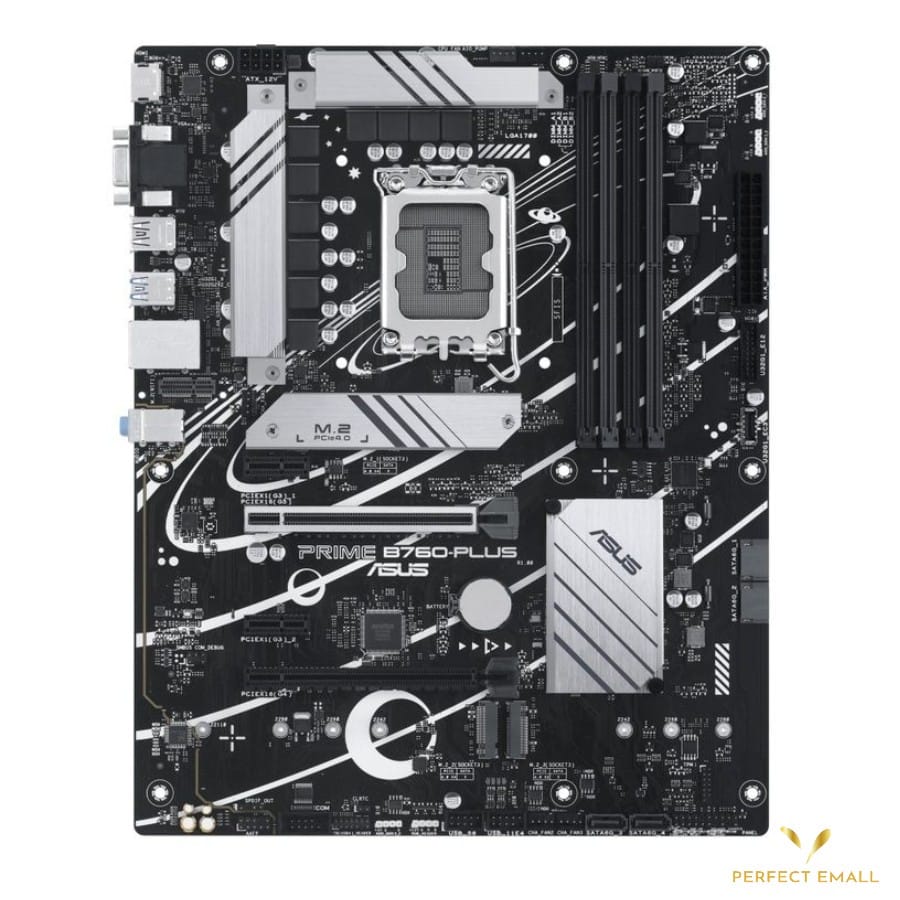

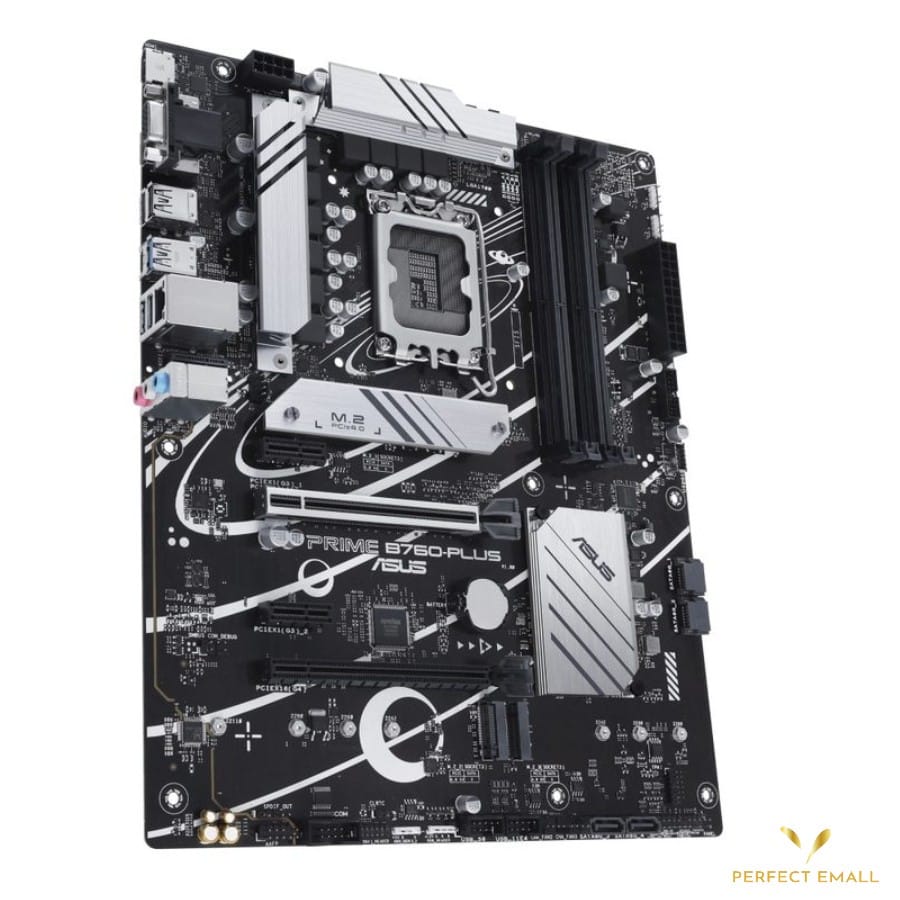

The ASUS PRIME B760-PLUS is a versatile and reliable ATX motherboard built for Intel 13th and 12th Gen processors with the LGA1700 socket. Featuring DDR5 memory support, PCIe 5.0 for GPUs, and multiple M.2 slots, this motherboard is an excellent choice for professionals, creators, and everyday users who need stability and future-ready performance.
With 2.5GbE LAN, advanced cooling features, and ASUS AI tuning technologies, the PRIME B760-PLUS delivers efficiency, connectivity, and durability. Its sleek design and user-friendly BIOS make it an ideal option for both first-time builders and experienced PC enthusiasts.
Key Features
- CPU Support: Intel® 12th & 13th Gen Core™, Pentium® Gold, and Celeron® processors (LGA 1700)
- Memory: Dual-channel DDR4/DDR5 support (up to 128GB, OC speeds supported)
- Expansion: PCIe® 4.0 x16 slot for high-performance graphics cards
- Storage: Dual M.2 slots (PCIe 4.0 NVMe) + SATA 6Gb/s ports
- Connectivity: USB 3.2 Gen 2 Type-C®, USB 3.2 Gen 1, USB 2.0, Intel® 1 Gb Ethernet
- Cooling & Reliability: VRM heatsinks, M.2 heatsink, AI Cooling, 5X Protection III hardware safeguards
- Form Factor: ATX, offering wide compatibility for cases and builds
- Processor producer: Intel
- Processor socket type: LGA 1700
- Form Factor: Full-ATX
- Max Memory Size: 192 GB
- Memory Type: DDR5
- Max Memory Frequency: 7200 MHz
- Memory Slots: 4x
- 2 Slots: 3x
- WiFi: No
- LAN Port #: 1
- HDMI Port: Yes
- DVI Port: No
- D-Sub Port: Yes
- Thunderbolt: Yes
- PCI-E 16x: 2x
- PCI-E 1x: 2x
- USB 3.0 #: 3x
- USB 2.0 #: 2x
- RAID: Yes
- ECC Support: No
- TPM: Yes
- COM1: Yes
- LPT: No
- XMP: Yes
- Network Adapter: Realtek
- SATA 6Gb/s: 4x
- Package
-Number. of pcs in package: 1
-Weight (kg): 1.212
-Dimensions (cm): 26.7x33.2x5.8
-Width(cm): 26.7
-Height(cm): 33.2
-Length (cm): 5.8
