Description

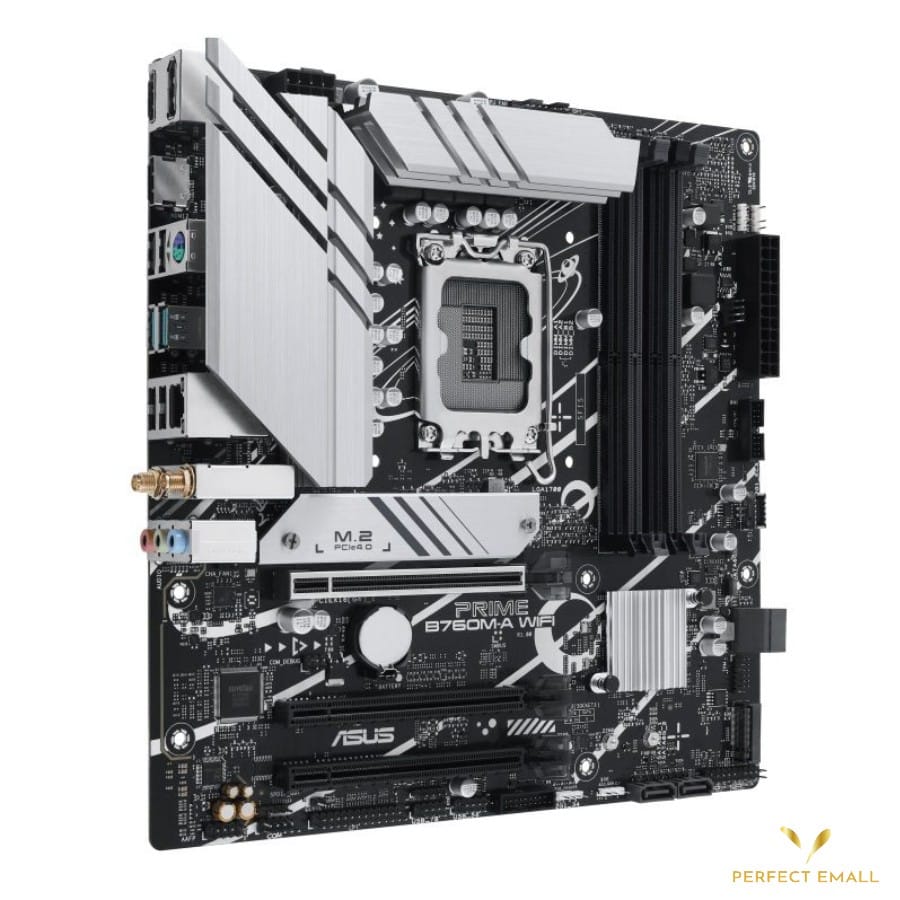

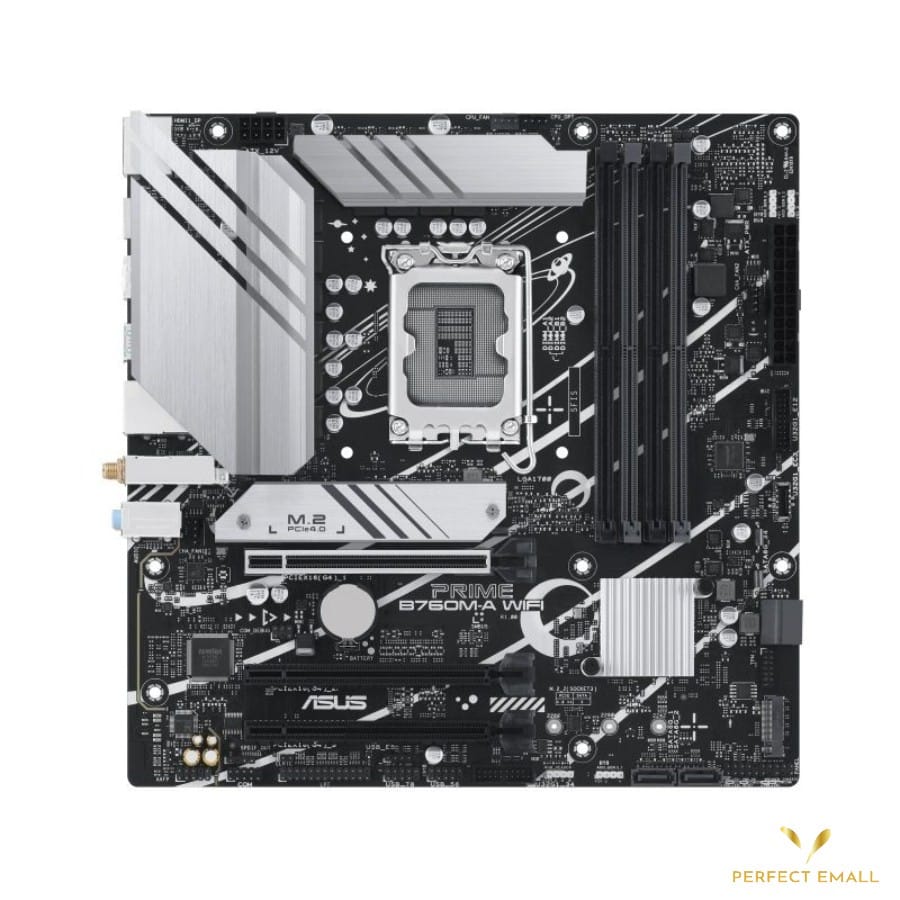

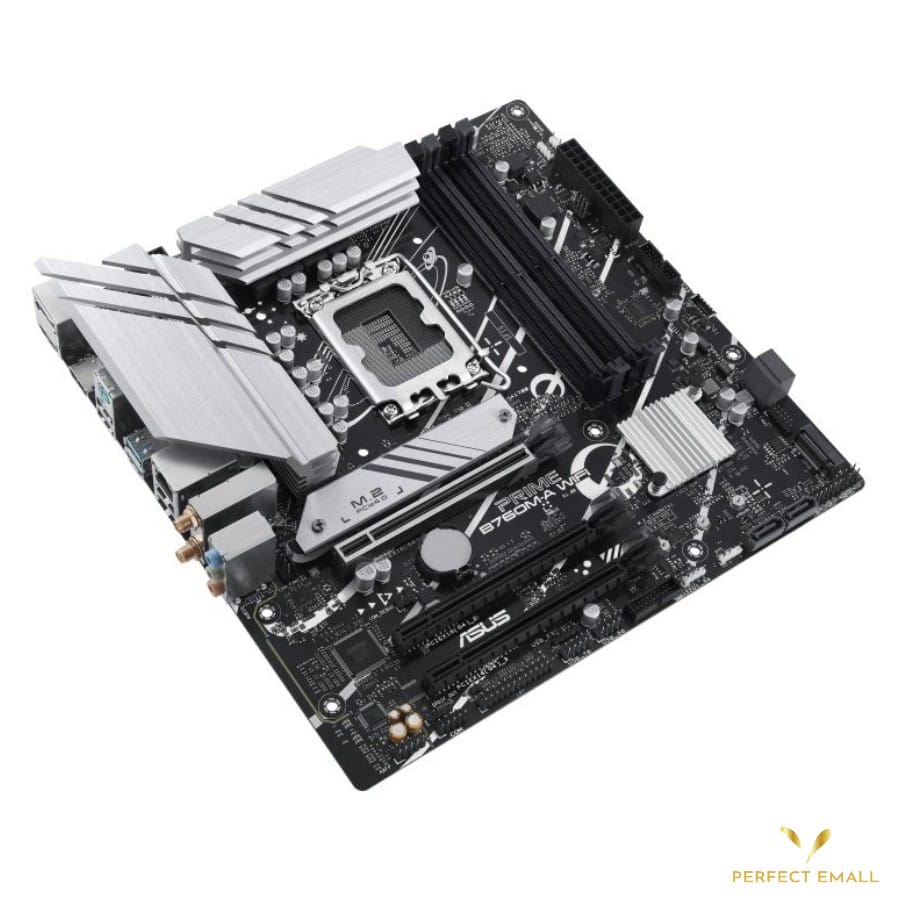

The ASUS PRIME B760M-A WIFI is a compact yet powerful micro-ATX motherboard designed for Intel 13th and 12th Gen processors with the LGA1700 socket. Combining affordability with premium features, it supports DDR5 memory, PCIe 5.0 graphics, and dual M.2 PCIe 4.0 slots for fast storage and smooth performance.
With Wi-Fi 6, Intel 2.5GbE LAN, and advanced cooling solutions, the PRIME B760M-A WIFI delivers strong connectivity and stability in a smaller form factor. Perfect for builders who want a balance of efficiency, performance, and space-saving design.
Key Features
- CPU Support: Compatible with Intel 12th & 13th Gen Core processors (LGA 1700).
- Form Factor: Micro-ATX (mATX) design for versatile builds.
- Memory: Supports DDR5 memory for higher bandwidth and efficiency.
- Storage: Dual M.2 slots (PCIe 4.0) for ultra-fast NVMe SSDs.
- Networking: Integrated Intel WiFi 6 and 2.5Gb Ethernet for fast, stable connections.
- Expansion: PCIe 4.0 x16 slot for next-gen graphics cards.
- Connectivity: USB 3.2 Gen 2 Type-A and Type-C for high-speed external devices.
- Cooling: Comprehensive cooling design with VRM heatsinks and multiple fan headers.
- Customization: ASUS Aura Sync RGB support for synchronized lighting effects.
- Software Features: Armoury Crate, AI Cooling, and intuitive BIOS for easy setup.
- Processor producer: Intel
- Processor socket typ: LGA 1700
- Form Factor: Micro-ATX
- Max Memory Size: 128 GB
- Memory Type: DDR5
- Max Memory Frequency: 7200 MHz
- Memory Slots: 4x
- 2 Slots: 2x
- WiFi: Yes
- LAN Port #: 1
- HDMI Port: Yes
- DVI Port: No
- D-Sub Port: No
- Thunderbolt: No
- PCI-E 16x: 3x
- USB 3.0 #: 2x
- USB 2.0 #: 4x
- RAID: Yes
- ECC Support: No
- TPM: Yes
- COM1: Yes
- LPT: Yes
- XMP: Yes
- Network Adapter: Realtek
- SATA 6Gb/s: 4x

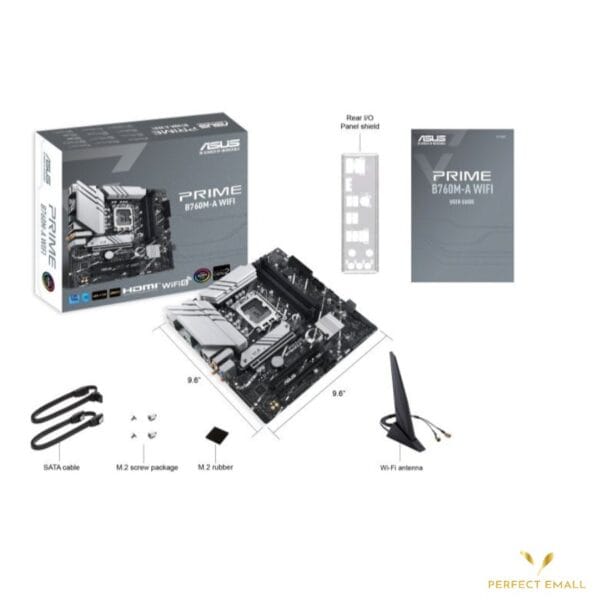

- Package
-Number. of pcs in package: 1
-Weight (kg): 1.47
-Dimensions (cm): 28.1x27.9x7
-Width(cm): 28.1
-Height(cm): 27.9
-Length (cm): 7
