AVMATRIX Shark H4 PLUS | 4‑Channel 10.1″ HDMI Switcher & Recorder | Multiview & Streaming

Description

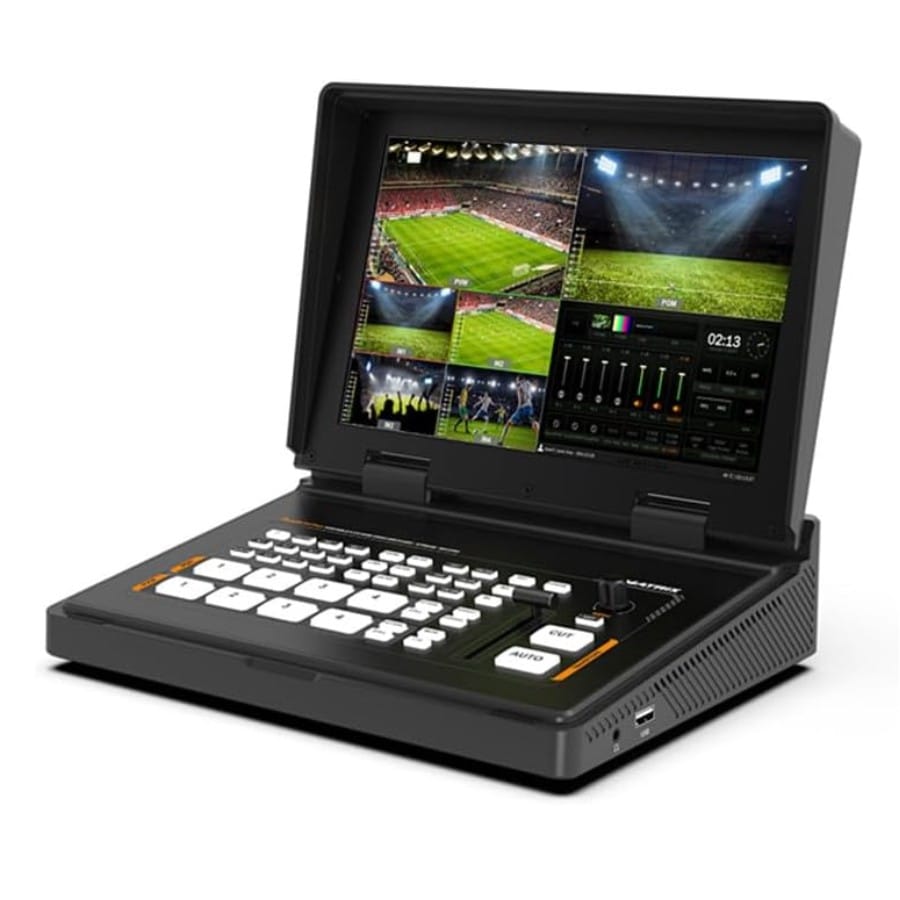

The AVMATRIX Shark H4 PLUS is a professional 4-channel HDMI switcher designed for live production, streaming, and recording. Featuring a 10.1″ Full HD IPS touchscreen with foldable multiview, it provides seamless preview (PVW) and program (PGM) monitoring.

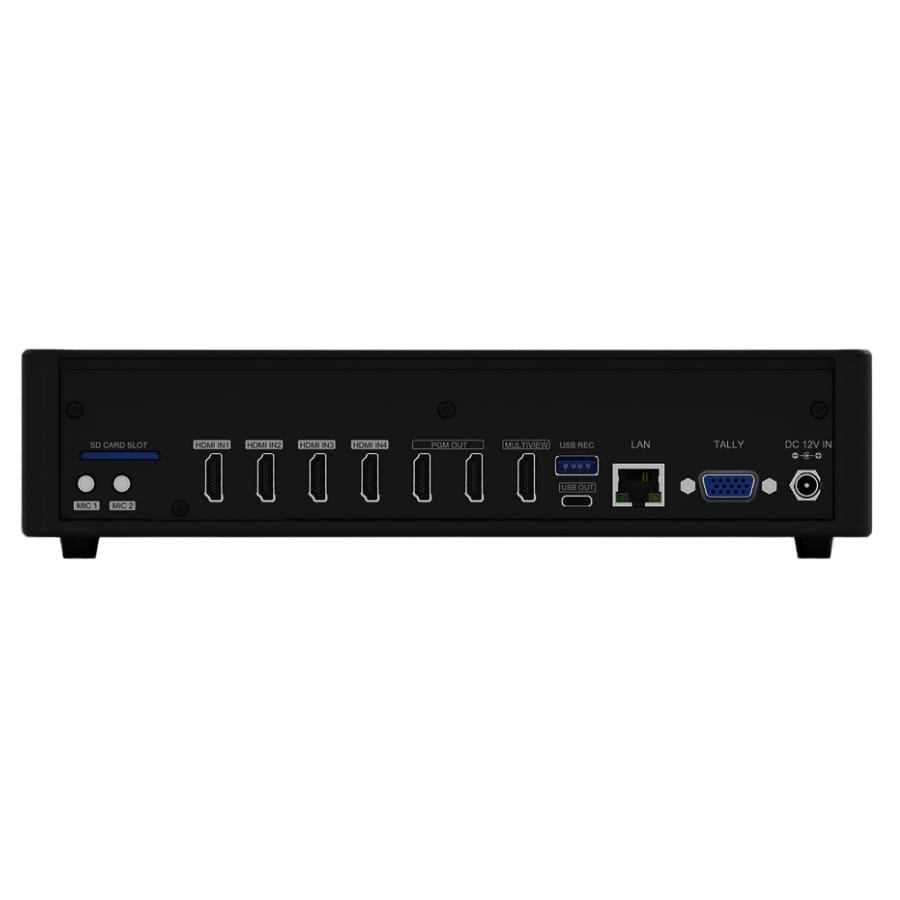

It supports 4 HDMI inputs, dual HDMI program outputs, HDMI multiview output, and USB‑C capture/stream output, along with RTMP/SRT streaming and recording to USB or SD card. The Shark H4 PLUS is ideal for events, conferences, and professional content creation.

Advanced features include upstream luma/chroma keying, dual PIP/POP, downstream DSK/logo overlays, audio mixing, T-Bar transitions, wipe/mix/dip effects, and media library management.

 Key Features

• 10.1″ Full HD IPS touchscreen with foldable multiview

• Four HDMI inputs (auto-detected, up to 1080p60)

• Dual HDMI program outputs, HDMI multiview output, USB‑C capture/stream output

• RTMP/SRT streaming and USB/SD card recording

• Upstream luma/chroma key, dual PIP/POP; downstream DSK & logo overlay

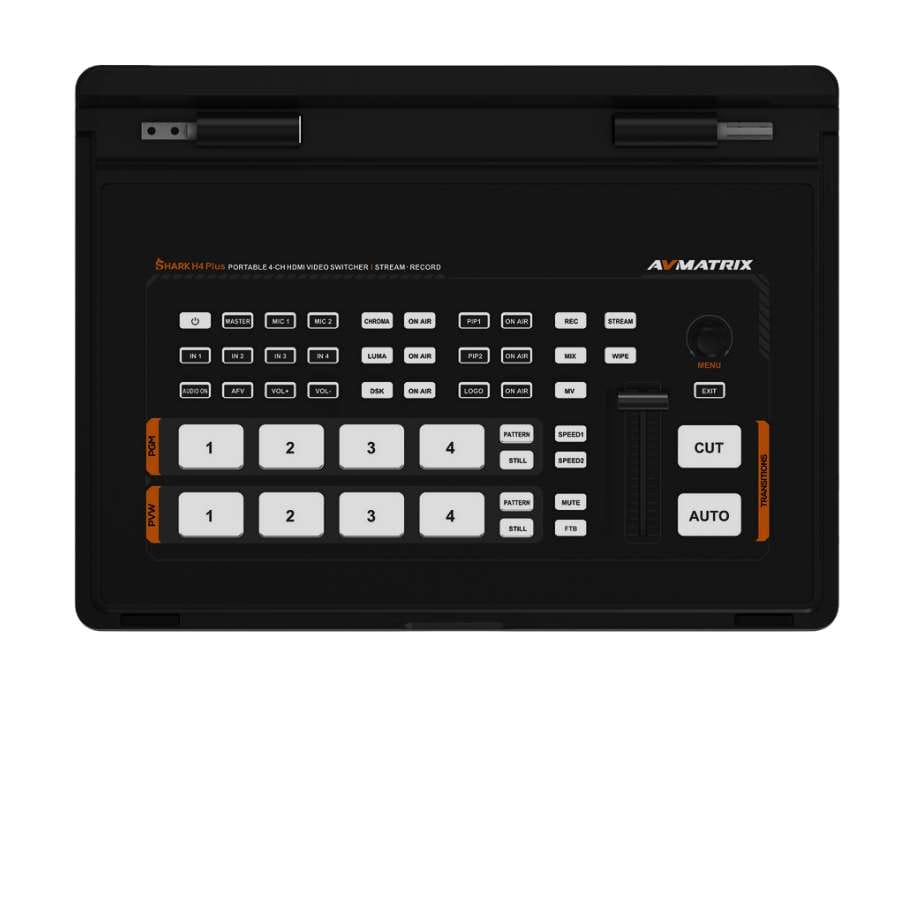

• Transitions: T-Bar, AUTO, CUT; Effects: WIPE, MIX, DIP

• Audio mixer: HDMI embedded + 2-channel mic/line in with delay support

• Media library with built-in patterns, user-imported images, capture images, and color generators

• GPIO tally, mute, fade-to-black, and configuration import/export
