AVMATRIX Shark S4 PLUS | 4-Channel SDI/HDMI Switcher & Recorder | 10.1″ FHD Multiview Touchscreen

Description

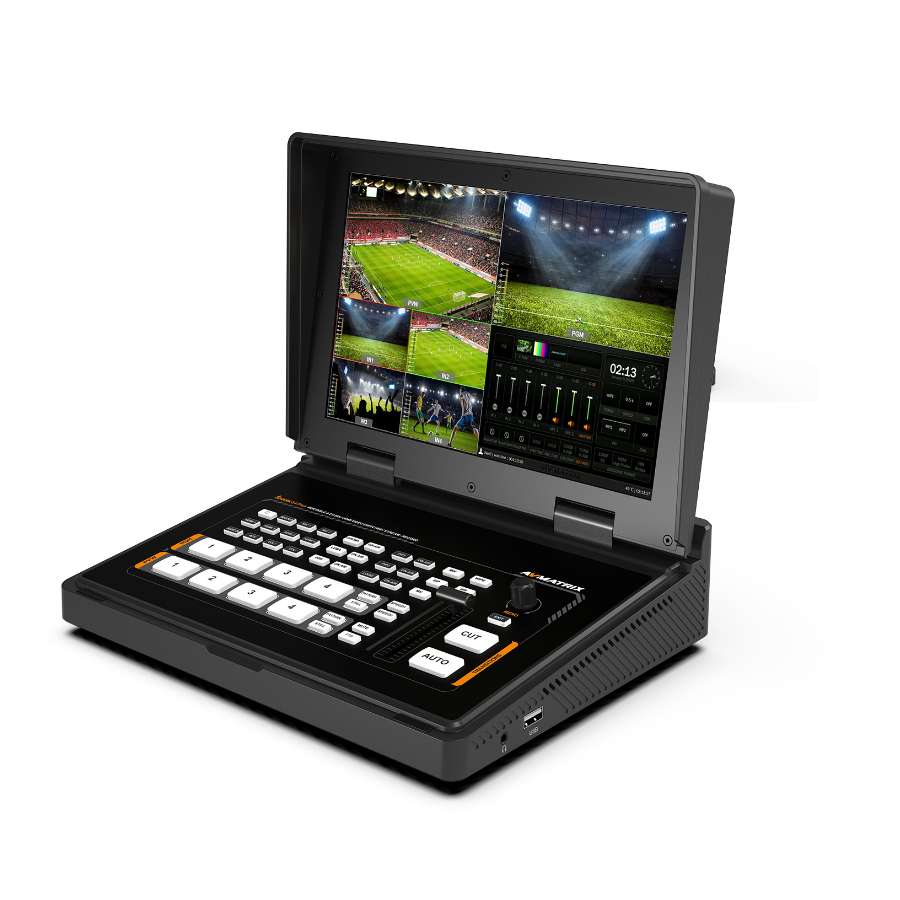

The AVMATRIX Shark S4 PLUS is a professional 4-channel video switcher with an integrated 10.1″ Full HD IPS touchscreen, designed for live production, streaming, and recording. It supports 2 × HDMI and 2 × 3G-SDI inputs, multiple program outputs, USB-C capture, and multiview monitoring.

With built-in RTMP/SRT streaming, USB/SD card recording, and a 2-channel audio mixer, the Shark S4 PLUS is an all-in-one solution for conferences, worship services, esports, education, and mobile broadcasting.

 Key Features

• 10.1″ Full HD IPS touchscreen with multiview preview/program display

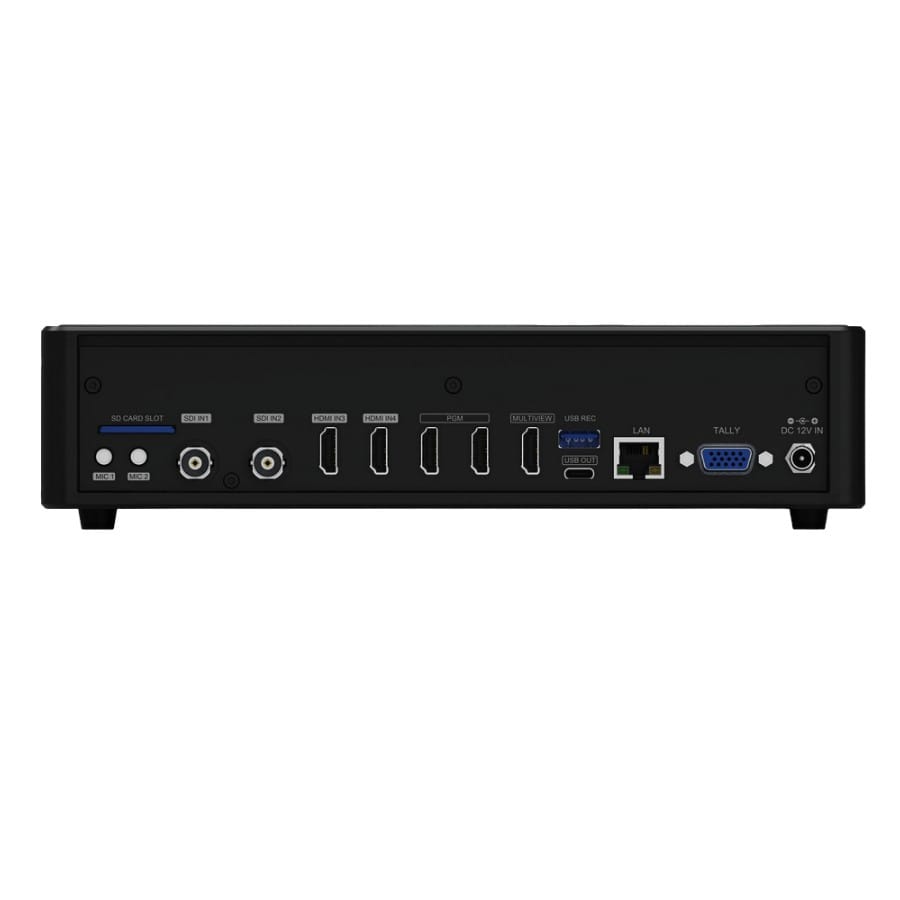

• 2 × HDMI + 2 × 3G-SDI inputs (up to 1080p60, auto-detected)

• 2 × HDMI Program outputs, 1 × HDMI Multiview, and USB-C capture/stream

• Built-in RTMP/SRT streaming and recording to USB-A or SD card (up to 32 Mbps)

• 2-channel audio mixer: embedded HDMI/SDI audio + analog mic/line input with delay adjustment

• Advanced keying: chroma key, luma key, dual PIP/POP, DSK, and logo overlay

• Smooth transitions: T-Bar, AUTO, CUT; effects include WIPE, MIX, DIP, STILL, MUTE, FTB

• Media library with 39 presets, support for imported/captured images, and color generators

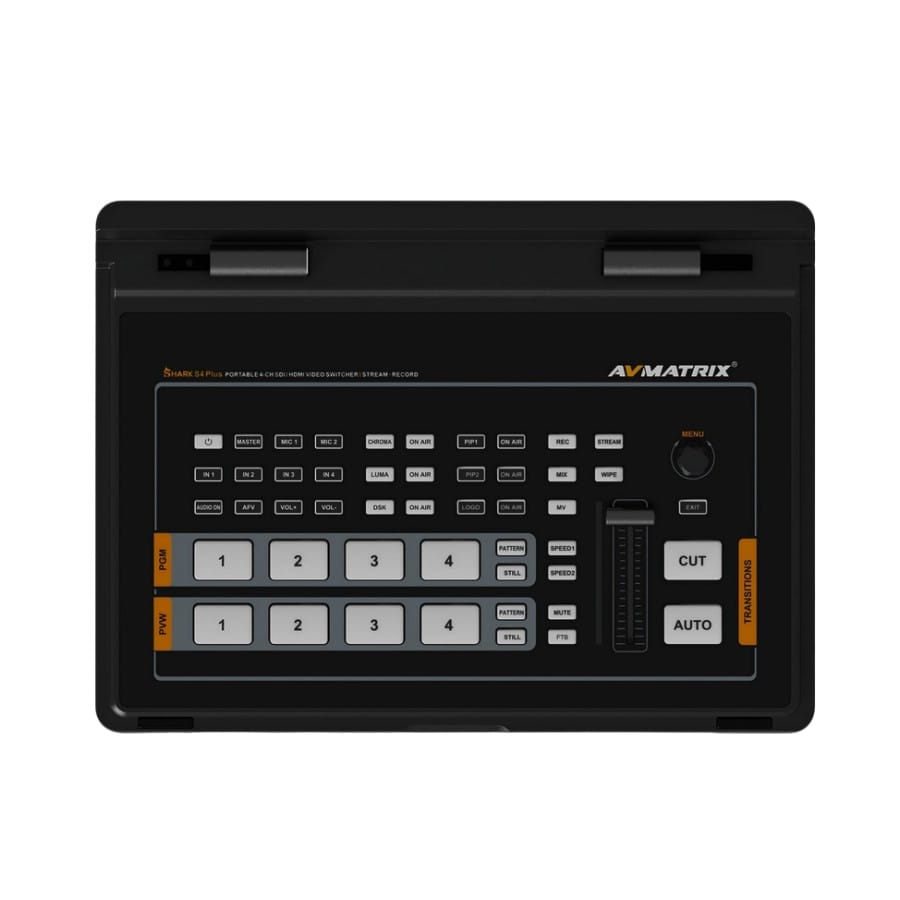

• Control via buttons, T-Bar, or LAN-based web interface for remote operation

• Professional tally system support with DB-15 GPIO port
