AVMATRIX Shark S6 | 6-Channel SDI/HDMI Switcher & Recorder | 5″ HD Multiview Display

Description

The AVMATRIX Shark S6 is a professional 6-channel video switcher designed for live production, streaming, and recording. With 4 × SDI and 2 × HDMI inputs, it offers maximum flexibility for multi-camera workflows. The built-in 5″ HD multiview display allows easy monitoring of program, preview, and inputs.

Supporting RTMP/SRT streaming, USB/SD recording, integrated audio mixing, chroma & luma keying, PTZ camera control, and advanced transitions, the Shark S6 is an all-in-one solution for events, worship services, esports, education, and portable production environments.

 Key Features

• 4 × 3G-SDI + 2 × HDMI inputs (auto-detected, up to 1080p60)

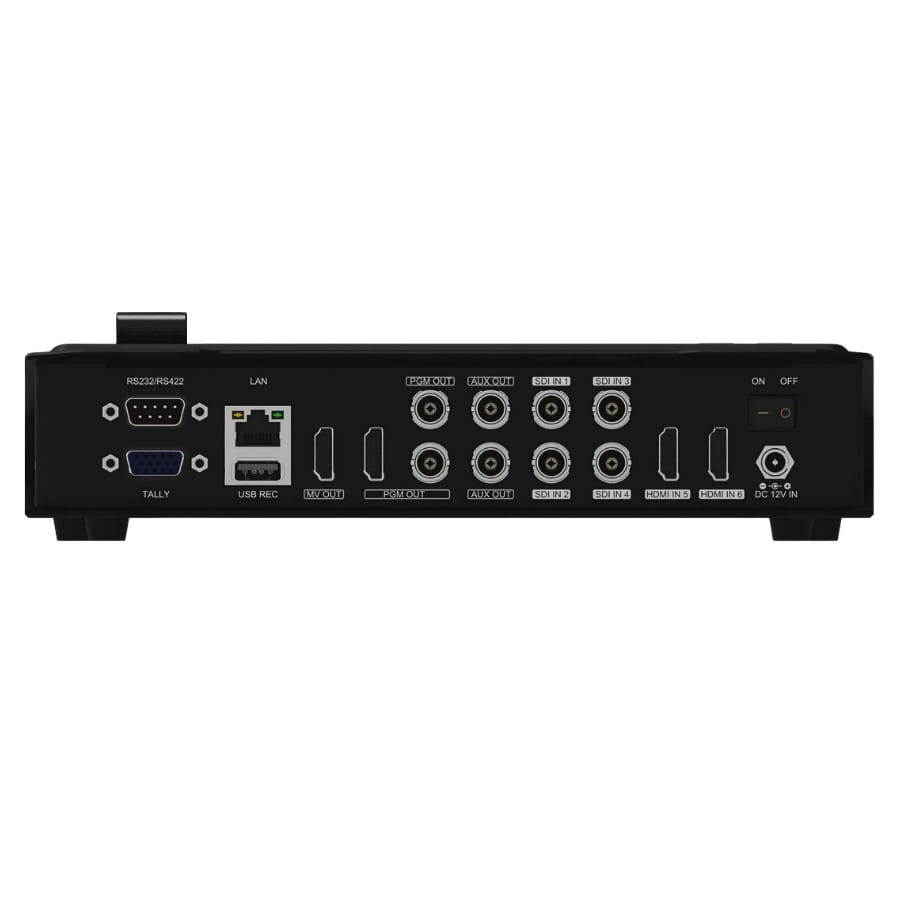

• 2 × SDI Program, 1 × HDMI Program, 2 × SDI AUX, 1 × HDMI multiview outputs

• USB-C capture/stream output plus LAN streaming (RTMP/SRT/RTMPS)

• Recording to USB-A or SD card (MP4, up to 32 Mbps)

• Embedded HDMI/SDI audio + 2 × analog mic/line inputs with adjustable delay

• Advanced keying: chroma key, luma key, dual PIP/POP, DSK, and logo overlay

• Smooth transitions: CUT, AUTO, T-Bar, with WIPE, MIX, DIP, STILL, MUTE, and FTB effects

• Built-in media library with default patterns and user-imported images

• PTZ camera control via LAN, RS-232/422/485 (VISCA, Pelco D/P, ONVIF)

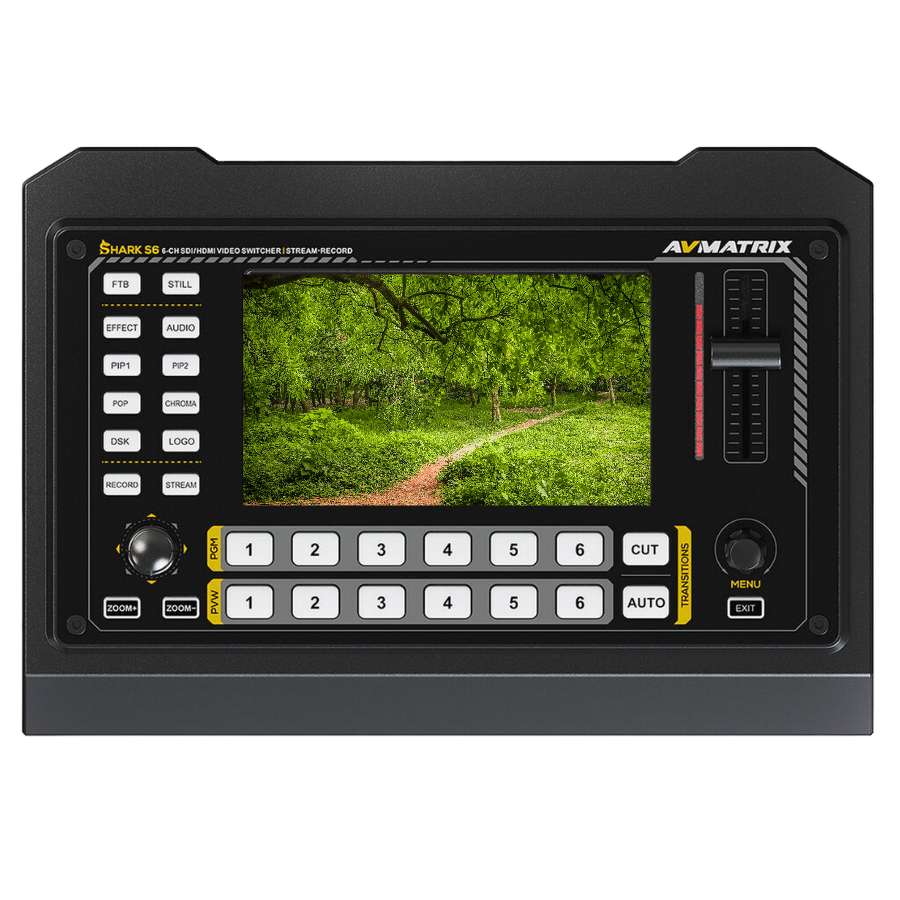

• Portable design with 5″ multiview LCD for flexible monitoring
