Description

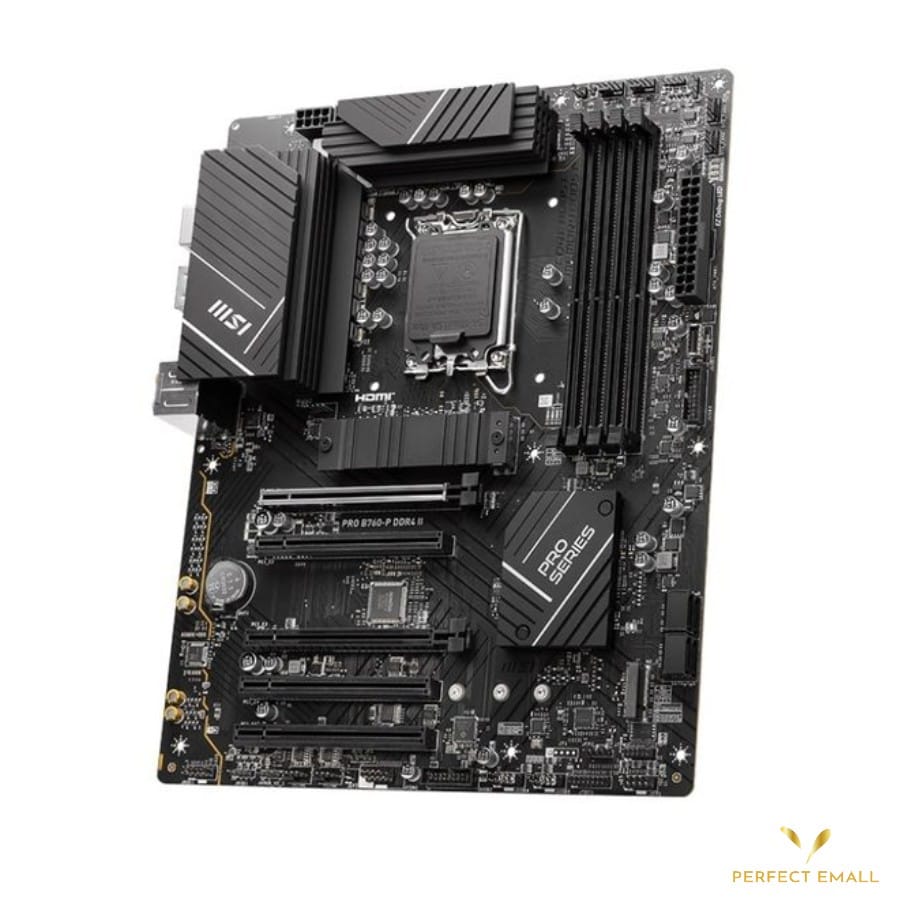

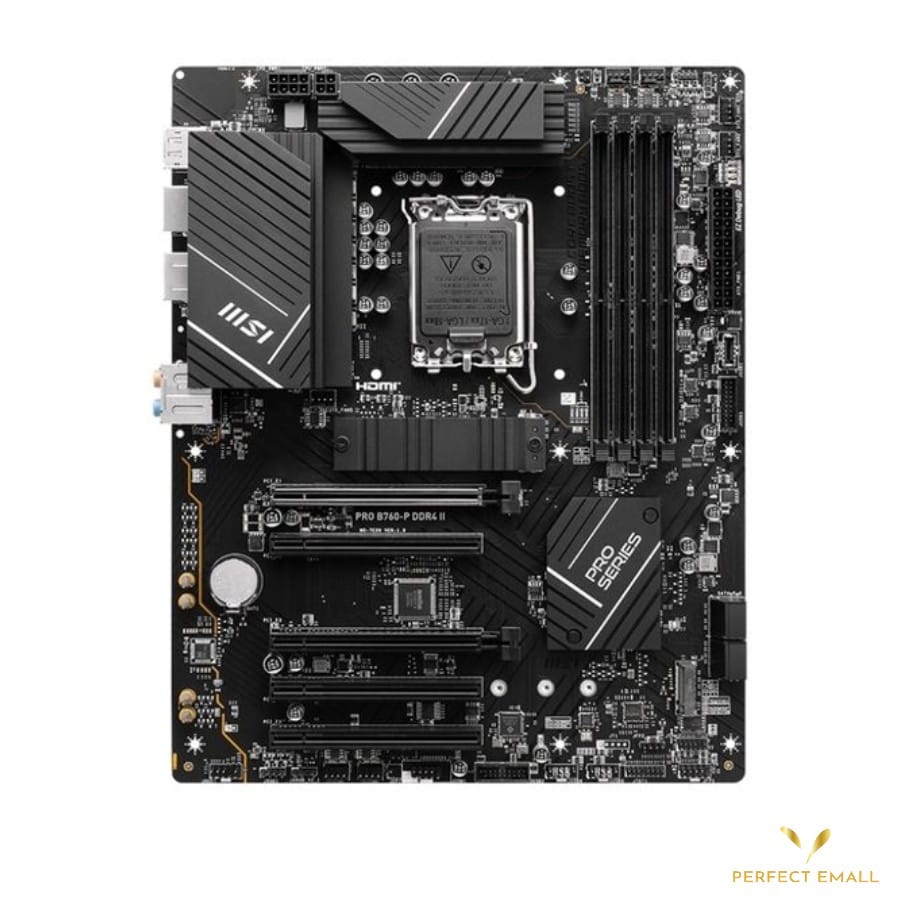

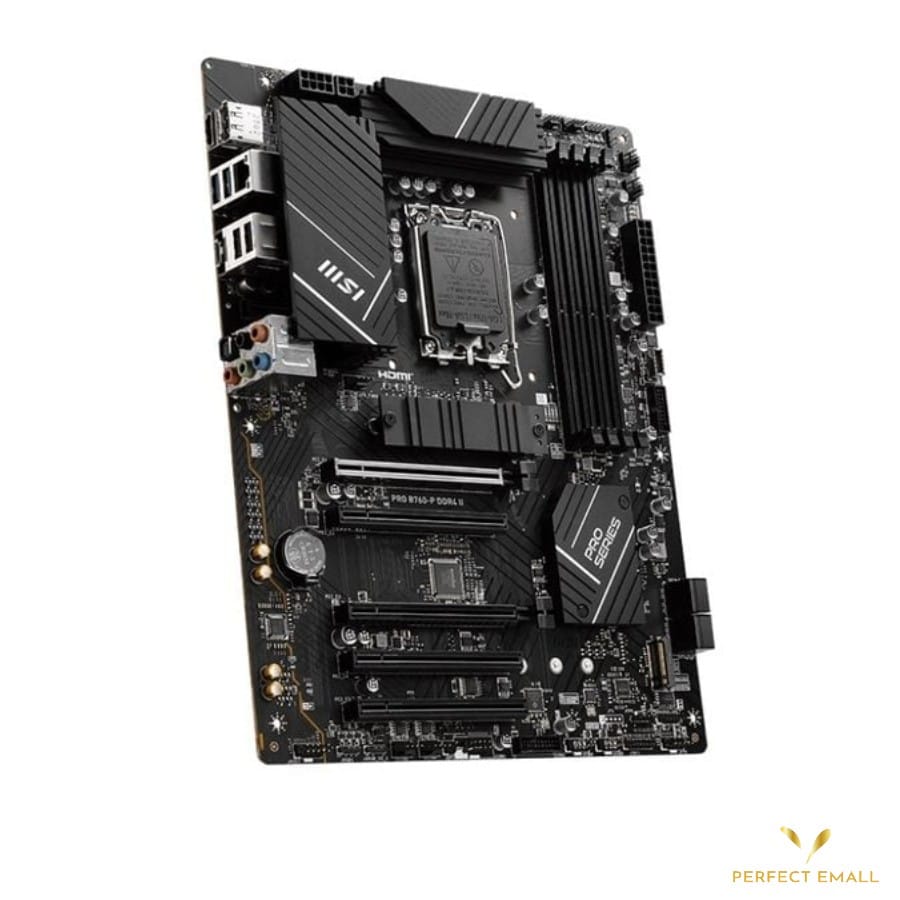

The MSI PRO B760-P DDR4 II is a reliable and efficient ATX motherboard designed for productivity, business, and everyday PC builds. Supporting Intel 13th and 12th Gen Core processors on the LGA1700 socket, it delivers excellent stability and performance with support for DDR4 memory and PCIe 5.0.
With dual M.2 Gen4 slots, 2.5GbE LAN, and MSI’s advanced thermal solutions, this motherboard provides seamless connectivity, fast storage, and stable operation. Built with high-quality components, the PRO B760-P DDR4 II ensures long-lasting reliability for professional and home use.
Key Features
- Processor Support: Intel® 12th, 13th, and 14th Gen Core™, Pentium® Gold, and Celeron® (LGA 1700)
- Chipset: Intel® B760
- Memory: Supports DDR4 dual-channel memory, high-frequency modules
- Expansion Slots: PCIe 4.0 for next-gen graphics and add-in cards
- Storage: M.2 slots with PCIe 4.0 & SATA support for ultra-fast SSDs
- Networking: Intel Gigabit LAN for stable and fast connections
- Cooling: Extended heatsink design with enhanced thermal solutions
- Form Factor: ATX, offering balanced expansion and compatibility
- Utilities: MSI Center & Click BIOS 5 for easy system management
- Processor producer : ntel
- Processor socket type: LGA 1700
- Form Factor: Full-ATX
- Max Memory Size: 128 GB
- Memory Type: DDR4
- Max Memory Frequency: 5333 MHz
- Memory Slots: 4x
- 2 Slots: 2x
- WiFi: No
- LAN Port #: 1
- HDMI Port: Yes
- DVI Port: No
- D-Sub Port: No
- Thunderbolt: No
- PCI-E 16x: 5x
- USB 3.0 #: 2x
- USB 2.0 #: 2x
- RAID: Yes
- ECC Support: No
- TPM: Yes
- COM1: Yes
- LPT: No
- XMP: Yes
- Network Adapter: Realtek
- SATA 6Gb/s: 4x
- Package
-Number. of pcs in package: 1
-Weight (kg): 1.434
-Dimensions (cm): 27.4x35.1x6.9
-Width(cm): 27.4
-Height(cm): 35.1
-Length (cm): 6.9
